The F-14 Tomcat, an iconic fighter jet of the late 20th century, is renowned for its role in the United States Navy during the Cold War. Known for its versatility and formidable capabilities, one of the lesser-known but critical features of the F-14 is its ejection seat system. The ejection seat is a crucial life-saving mechanism designed to ensure the survival of the crew in the event of an emergency. In this article, we will explore the F-14 ejection seat in detail, focusing on its design, functionality, and the reasons behind its distinctive features.

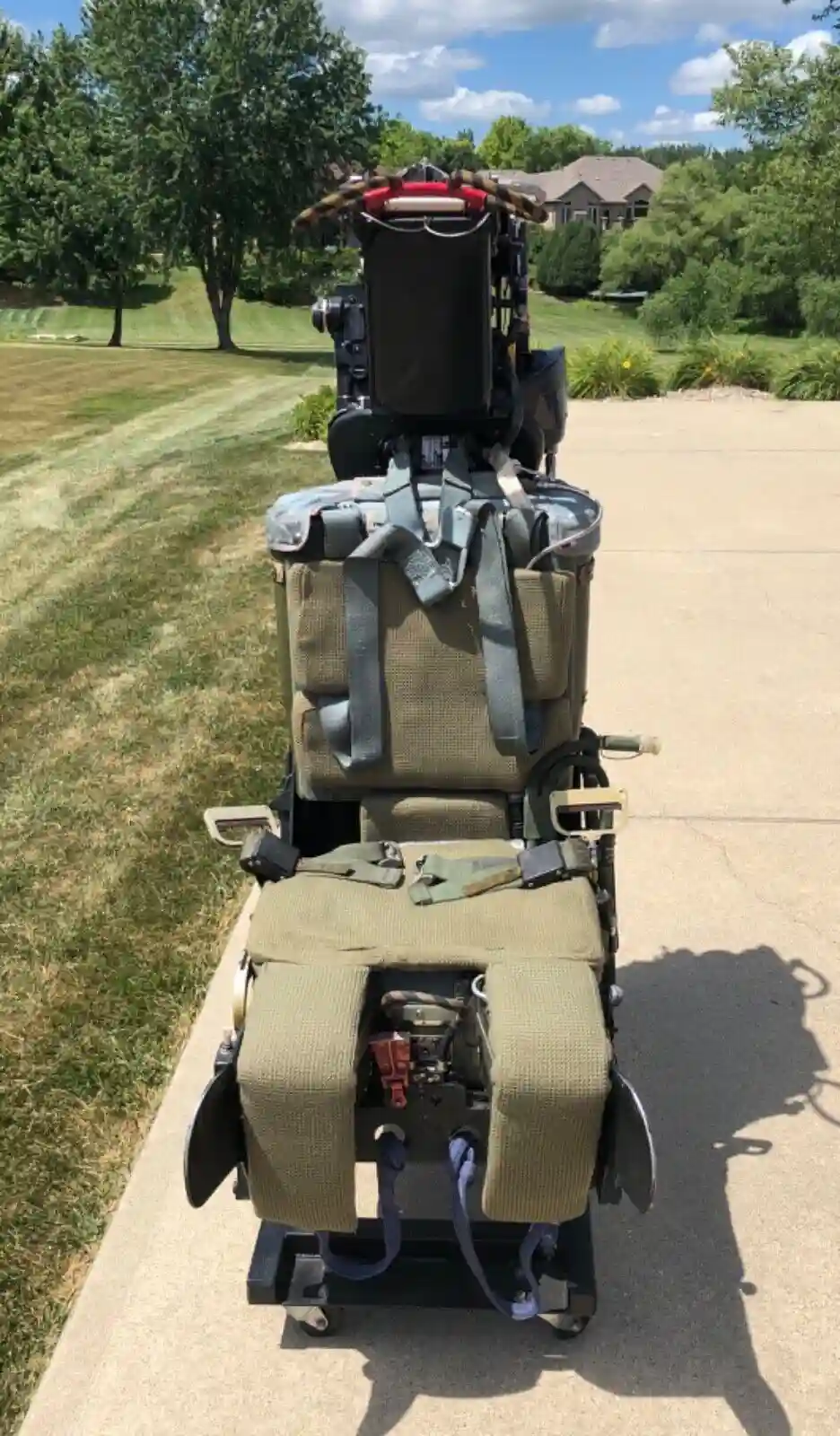

The Martin-Baker GRU-7A ejection seat, which was fitted in the F-14 Tomcat, was part of the renowned Mk.7 family of ejection seats. It was specifically engineered for the F-14A variant, following modifications to earlier seats used in aircraft like the A-6 Intruder and EA-6 Prowler. The GRU-7A was designed to ensure safe ejection for pilots and Radar Intercept Officers (RIOs) under extreme conditions, with the ability to operate across a wide range of altitudes and airspeeds.
Key Features of the GRU-7A Ejection Seat
The GRU-7A seat was designed with a series of improvements to enhance pilot and RIO safety. Some of its notable features included:
- Redesigned Headrest: The headrest of the GRU-7A was shaped to provide better head support during ejection, ensuring that the pilot or RIO’s head would not be subjected to excessive trauma.
- Drogue Container: The seat was equipped with a drogue gun unit that deployed a small parachute to slow the ejection and stabilize the occupant, reducing the risk of injury during the ejection sequence.
- Flatter Parachute Container: The parachute container was designed to be more compact, helping reduce the seat’s overall size and improving ejection dynamics, especially during high-speed ejections.
- Survival Kit with Oxygen Bottle: The survival kit was an essential addition, providing the ejected crew member with vital supplies such as an oxygen bottle to ensure survival until rescue operations could be conducted.
- Gas-Initiated Rocket System: The seat utilized a rocket-propelled ejection system powered by gas, a highly effective method for quickly propelling the crew out of the aircraft in an emergency. The rocket system was triggered by a trip rod assembly connected to the drogue gun unit.
- Extended Seat Bucket Shape: The extended bucket shape ensured that the occupant remained securely seated during the ejection, minimizing the risk of injury.
These features were crucial in ensuring that ejections from the F-14 Tomcat were as safe and efficient as possible, regardless of the conditions.
Why Did the F-14 Have Two Ejection Handles?
One of the unique features of the F-14’s ejection system was the presence of two ejection handles. This was a deliberate design choice made to enhance the chances of a successful ejection, especially under extreme conditions.
The Primary Ejection Handle
The upper, or primary, ejection handle was the main method used for initiating an ejection. When pulled, this handle activated the ejection seat sequence, including the release of the canopy and the deployment of the rocket-propelled seat. One important feature of the primary ejection handle was the deployment of a protective hood over the pilot’s or RIO’s face. This hood served two critical purposes:
- Protection from Flames: Ejection sequences could involve the expulsion of hot gases or flames, and the hood ensured that the crew members were shielded from potential burns.
- Whiplash Protection: The hood also helped protect the crew member from the forces of whiplash that could occur during the rapid ejection, thereby reducing the risk of neck injuries.
The Secondary Ejection Handle

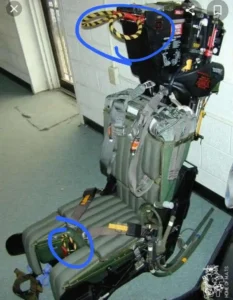

The second handle, located lower and closer to the seat occupant’s hand, served as an emergency backup in case the primary handle could not be reached or operated due to extreme G-forces. In situations such as a flat spin or when the aircraft was subjected to excessive centrifugal force, the crew member might find it difficult to reach the primary handle. In such cases, the secondary handle allowed for an expedited ejection with a much shorter pull distance.
This redundancy was critical, as the pilot or RIO might not always have the luxury of time or mobility to reach the primary handle. The secondary handle provided a quick, more accessible means of ejection, potentially saving valuable seconds during an emergency.
Flat Spin and Ejection Dynamics
The F-14 Tomcat was known to be prone to entering flat spins under certain conditions, particularly during high-speed maneuvers or rapid altitude changes. In a flat spin, the aircraft’s canopy would often hover over the fuselage for a brief period, making it challenging for the crew to initiate the ejection sequence. To address this issue, the aircraft’s ejection system was designed to separate the canopy from the fuselage first, followed by a slight delay before initiating the ejection sequence. This delay ensured that the pilot and RIO could be safely ejected, without the risk of being struck by debris or the canopy itself.
In instances where the ejection needed to happen faster, especially under extreme G-forces, the lower handle allowed the occupant to quickly eject with a minimum of delay, significantly increasing the likelihood of survival.
The Evolution of Ejection Seat Technology in the F-14
The development of the ejection seat system for the F-14 was part of a broader evolution in military aviation technology. As aircraft became faster, more maneuverable, and more complex, the need for effective ejection systems grew increasingly vital. The F-14 ejection seat was a direct response to these challenges, designed not only to enhance crew safety but also to ensure that the system could function in a variety of emergency situations.
Challenges in Ejection Seat Design
Several factors influenced the design of the F-14’s ejection seat system. These included the aircraft’s flight characteristics, the physical demands placed on the crew during combat, and the need for redundancy in case of system failure. Some of the specific challenges addressed in the F-14’s ejection seat design included:
- Handling High G-Forces: Ejecting from a high-speed jet subjected the pilot to intense forces, often in excess of 20 Gs. The ejection seat had to be designed to minimize injury while ensuring that the occupant was safely ejected.
- Ensuring Reliability: Given the high-risk nature of military aviation, the ejection seat system needed to be reliable under any circumstance. This meant that even in cases of severe damage to the aircraft, the system had to function flawlessly.
- Improved Pilot Visibility: Ejecting in extreme conditions, such as a flat spin or during combat, meant that pilots often had limited visibility. The F-14’s ejection seat was designed to improve rearward visibility and minimize the physical strain of ejection.
Advancements and Legacy
Over the years, the F-14’s ejection seat system was continually refined, with improvements made to the seat’s design, the safety mechanisms, and the overall ejection process. The GRU-7A, with its integrated survival kit, specialized headrest, and innovative dual-handle system, set a high standard for future ejection seat technology.
The F-14 Tomcat may have been retired from active service in the U.S. Navy in 2006, but its ejection seat technology and the lessons learned from its design continue to influence the development of modern fighter aircraft.
Conclusion: The Critical Role of the F-14 Ejection Seat
The F-14 Tomcat was one of the most advanced and feared aircraft of its time, and its ejection seat system played an integral role in ensuring the safety and survival of its crew. Through careful design, including the incorporation of advanced features such as the dual ejection handles and the gas-initiated rocket system, the F-14’s ejection seat was engineered to function flawlessly under extreme conditions. This system saved countless lives during its service, and its legacy continues to shape aviation safety standards today.
The F-14’s ejection seat serves as a testament to the importance of innovation in military aviation technology, ensuring that pilots and RIOs had a reliable means of escape in the most perilous of situations.
