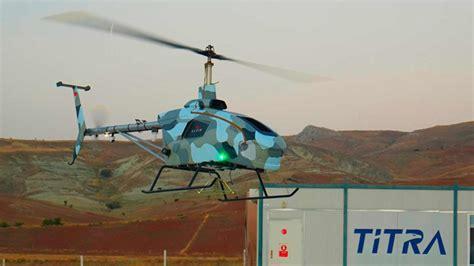

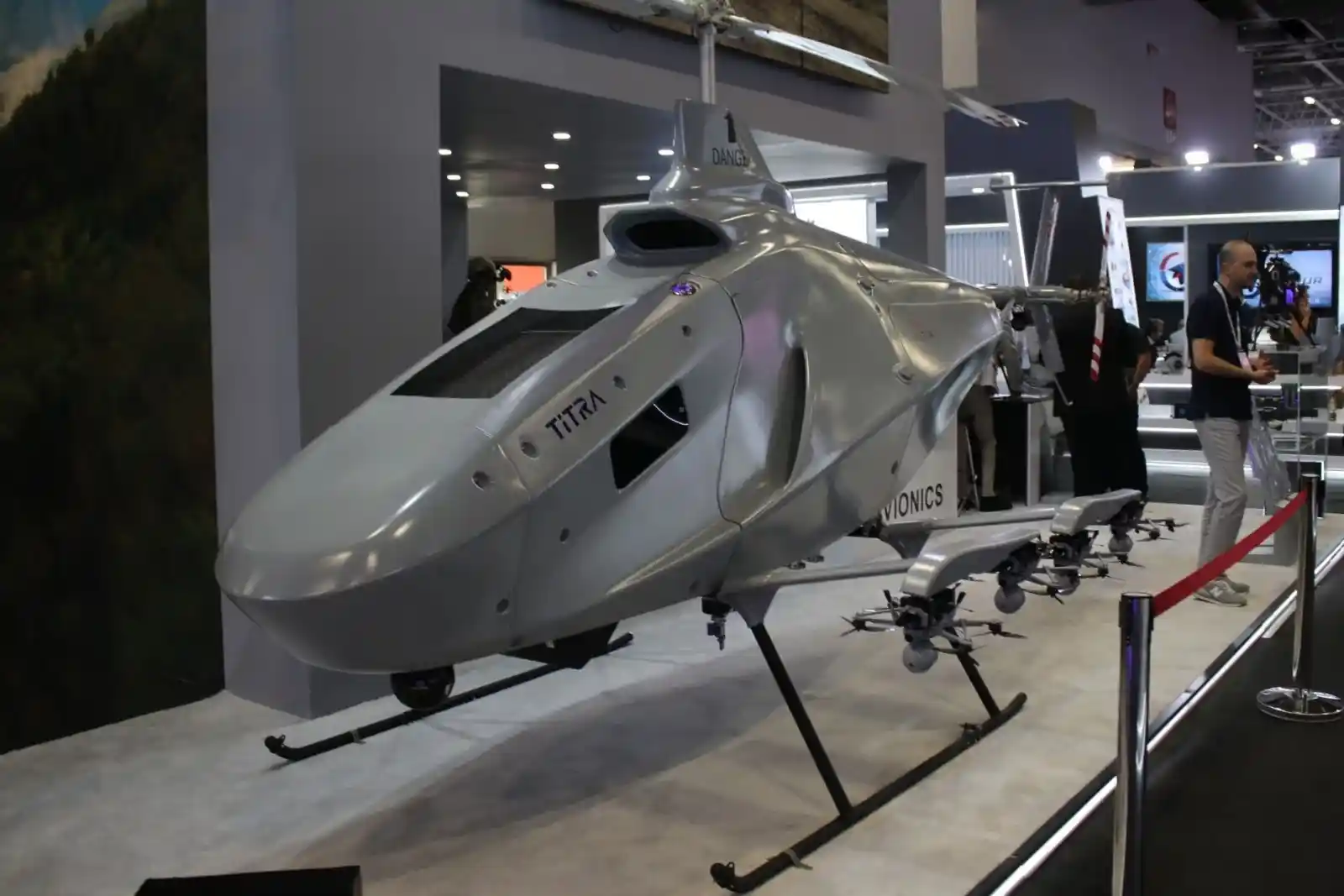

The unveiling of the ALPiN unmanned helicopter at the IDEF 2025 defense industry exhibition marks a defining moment in Türkiye’s ambition to advance its indigenous unmanned aerial system (UAS) capabilities. Developed by Titra Teknoloji, a subsidiary of Pasifik Teknoloji, ALPiN is a robust and highly adaptable Vertical Takeoff and Landing (VTOL) platform designed to meet the demanding needs of both military and civilian applications. With its unprecedented payload capacity, advanced avionics, and modular mission adaptability, the ALPiN program represents a decisive step toward consolidating Türkiye’s autonomy in the field of next-generation unmanned aviation.
A New Breed of Unmanned Helicopter
Unlike most unmanned rotary-wing aircraft, the ALPiN is derived from a conventional two-seat helicopter frame that has been redesigned for autonomous operations. This unique approach allows for superior structural integrity, a larger payload envelope, and improved flight endurance compared to typical UAV platforms. Through the integration of servo actuators and a proprietary autopilot system, Titra Teknoloji has successfully transformed the helicopter into a fully unmanned system capable of single-button autonomous vertical takeoff and landing.
The ALPiN features a 130 hp gasoline engine with a 175-liter fuel tank, providing an endurance of over nine hours—a rare feat for an unmanned rotary platform. With a service ceiling of 6,400 meters and an operational radius of up to 200 kilometers, it can perform persistent surveillance and long-range tactical missions in environments previously inaccessible to traditional UAVs.
Performance Specifications and Capabilities
The performance metrics of the ALPiN place it in a class of its own:
- Control radius: Up to 200 km
- Cruising speed: 107 km/h
- Maximum speed: 203 km/h
- Endurance: More than 9 hours
- Payload capacity: 200 kg (including fuel)
- Service ceiling: 6,400 meters
- Wind tolerance: Up to 37 km/h
These specifications underscore the platform’s operational resilience across diverse environments, from dense urban landscapes to rugged mountain terrain and maritime theaters. Its ability to hover stably, rotate on its axis (pirouette) for tracking, and deploy multiple mission payloads makes it a formidable tool for intelligence, surveillance, target acquisition, and reconnaissance (ISTAR) operations.
Advanced Avionics and Mission Systems
At the heart of ALPiN lies a redundant autonomous flight system designed for mission reliability. It offers real-time mission planning with over 100 programmable waypoints, automatic return-to-launch functionality, and encrypted AES-256 communication links to ensure secure operations. The avionics suite incorporates:
- Radar altimeter and inertial navigation system (INS) for precision flight
- Encrypted L/S-band, VHF, and SATCOM communications
- Flight data logging for operational analysis
- Optional IFF identification and GNSS anti-jamming navigation
This advanced configuration supports seamless integration with ground control stations and battlefield networks, enabling collaborative operations with other unmanned or manned assets.
Multi-Mission Payload Flexibility
The ALPiN’s modular architecture allows for rapid reconfiguration based on mission needs. It can be outfitted with:
- EO/IR (Electro-Optical/Infrared) cameras for day and night surveillance
- Synthetic Aperture Radar (SAR) for terrain mapping and target detection
- LIDAR for precision mapping and obstacle detection
- AIS sensors for maritime situational awareness
- SIGINT and COMINT modules for electronic intelligence gathering
Its 200 kg payload capacity allows it to transport supplies such as ammunition, medical equipment, food, or communication relays, making it equally valuable for combat support, humanitarian aid, and disaster relief operations.
Dual-Use Operational Spectrum
The ALPiN has been purpose-built for dual-use applications, making it a strategic asset in both defense and civilian sectors. In military operations, it can provide artillery support by relaying target coordinates, sustain frontline units with supply deliveries, and conduct covert reconnaissance in high-risk areas. For civilian use, it serves as a platform for agricultural observation, meteorological research, emergency response, and telecommunication relay, including mobile base station deployment in disaster-stricken regions.
This wide-ranging adaptability gives the ALPiN a competitive edge in the global UAS market, appealing to nations seeking cost-effective, multi-role unmanned platforms.
The ALPiN-2: A Leap in Evolution

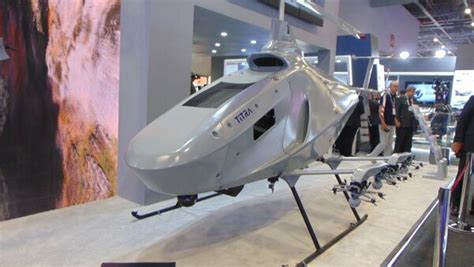

Titra Teknoloji’s commitment to continuous innovation is evident in the release of the ALPiN-2, an upgraded version of the platform. This new model introduces:
- Enhanced autopilot systems for improved autonomous navigation
- Strengthened onboard cybersecurity measures to counter evolving digital threats
- Revised freight mechanisms replacing the external cargo hook with an internal winch system, increasing safety and logistical flexibility
These refinements underscore Türkiye’s determination to enhance industrial self-reliance in dual-use VTOL drone systems while addressing future operational requirements.
Strategic Significance for Türkiye’s Defense and Technology Roadmap
The unveiling of the ALPiN at IDEF 2025 not only reflects Titra Teknoloji’s growing expertise but also highlights Türkiye’s broader defense strategy of achieving technological sovereignty in unmanned platforms. By leveraging domestic innovation and indigenous manufacturing, Türkiye seeks to reduce dependency on foreign suppliers while positioning itself as a competitive player in the global drone market.
Incorporating dual-use capabilities ensures that ALPiN aligns with Türkiye’s goal of export-oriented defense development, appealing to allied nations and international partners seeking affordable, high-performance unmanned solutions.
Conclusion: Redefining Tactical Drone Operations
The ALPiN unmanned helicopter stands as a testament to Türkiye’s rapid advancements in unmanned aviation, offering a rare combination of endurance, payload capacity, and mission flexibility. By bridging the gap between tactical drones and manned helicopters, it delivers a platform that can redefine modern battlefield and civilian operations. With the introduction of the ALPiN-2 and Titra Teknoloji’s clear roadmap for continued development, Türkiye has positioned itself at the forefront of next-generation VTOL drone technology.
As the global demand for multi-role unmanned platforms continues to grow, the ALPiN program is poised to make a profound impact—not only as a force multiplier for military operations but also as a lifeline for humanitarian and civilian missions worldwide.
