The F-16 Fighting Falcon is one of the most versatile multirole fighters in modern air combat. To enhance its survivability in electronic warfare (EW) environments, the aircraft is equipped with Electronic Countermeasure (ECM) Pods that provide jamming and deception capabilities against enemy radar and missile systems. These ECM pods play a critical role in protecting the F-16 from radar-guided threats, ensuring mission success in contested airspace.
Key ECM Pod Models

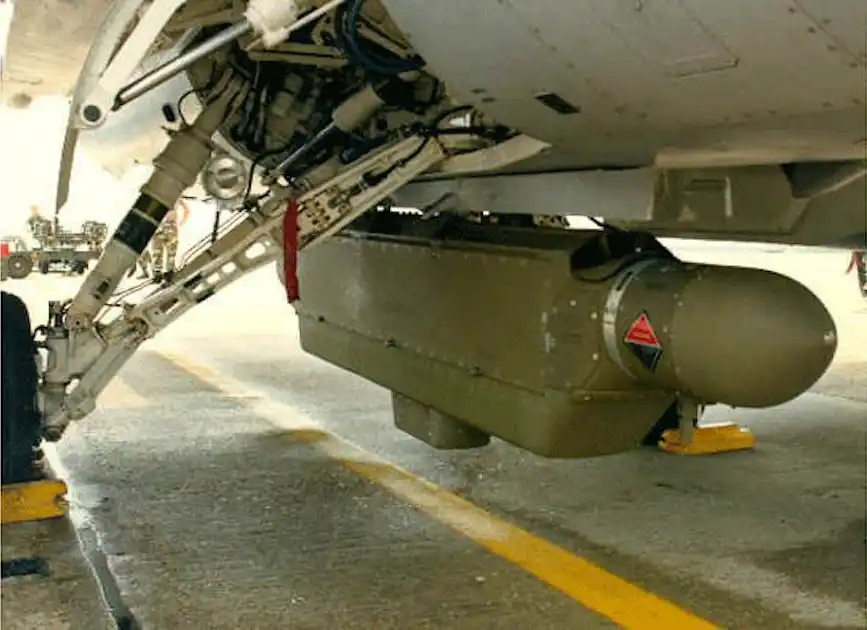

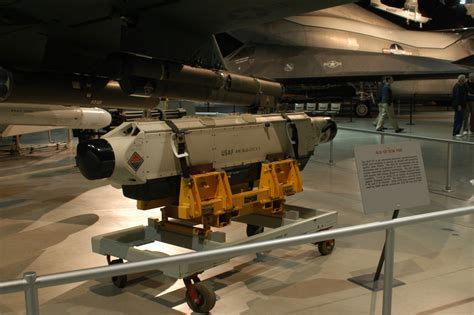

AN/ALQ-131 Electronic Countermeasure Pod
The AN/ALQ-131 ECM pod is a modular electronic warfare system designed to provide adaptable jamming against radar threats. It is one of the most widely used ECM pods on the F-16, featuring multiple frequency band coverage and an adaptive jamming capability that responds dynamically to enemy radar signals.
- Modular Design: Allows for flexible mission configurations tailored to specific threats.
- Multi-Band Coverage: Capable of jamming a wide range of enemy radar frequencies.
- Digital Radio Frequency Memory (DRFM) Integration: Modernized versions include DRFM technology, enhancing the pod’s ability to counter advanced pulse-Doppler radars.
AN/ALQ-184 Electronic Countermeasure Pod
As an improved variant of the AN/ALQ-131, the AN/ALQ-184 ECM pod features enhanced jamming algorithms and power management systems. It significantly boosts the survivability of the F-16 by providing superior electronic warfare capabilities.
- Advanced Jamming Algorithms: Designed to disrupt multiple threat sources simultaneously.
- Open Architecture Design: Enables software upgrades to counter evolving threats.
- Compact Configuration: Allows for additional payload options while maintaining effective jamming performance.
Integrated Electronic Warfare Systems
AN/ALR-56M(V) Radar Warning Receiver (RWR)
The AN/ALR-56M(V) RWR works in tandem with ECM pods to detect and classify enemy radar signals. It provides real-time threat information, allowing pilots to activate countermeasures before enemy engagement.
- Real-Time Threat Detection: Alerts pilots to hostile radar tracking.
- Enhanced Signal Processing: Improves radar signal classification and response efficiency.
- Data Link Integration: Shares threat information with other onboard systems for a coordinated response.
HARM Targeting System (HTS) Pod
The HARM Targeting System (HTS) Pod is designed for suppression of enemy air defenses (SEAD) missions. While primarily used to guide AGM-88 HARM missiles, it also provides passive radar detection that enhances the effectiveness of ECM pods.
- Enemy Radar Suppression: Helps in locating and neutralizing enemy air defense systems.
- Passive Radar Detection: Complements ECM pod functionality by improving situational awareness.
- High-Speed Data Processing: Enables quick response against emerging threats.
Operational Deployment and Combat Applications
Middle East Combat Missions
The F-16C, equipped with ECM pods, plays a crucial role in Middle Eastern conflict zones. These aircraft frequently carry a combination of weaponry, including 70mm APKWS II laser-guided rockets, AIM-120 and AIM-9X air-to-air missiles, and LITENING targeting pods. To counter hostile air defenses and drone threats, F-16s deploy with AN/ALQ-184 ECM pods and HTS pods, ensuring electronic dominance.
- Counter-UAV Operations: Electronic jamming prevents drone guidance and tracking.
- Survivability Against Surface-to-Air Missiles (SAMs): ECM pods disrupt enemy radar targeting.
- Multi-Mission Capabilities: Air-to-ground and air-to-air engagements within contested airspace.
F-16V Upgrades and Future Electronic Warfare Capabilities
The F-16V (Viper) introduces the AN/ALQ-211(V) Advanced Integrated Defensive Electronic Warfare Suite (AIDEWS), further enhancing its electronic warfare capabilities. This integrated system provides a full-spectrum electronic protection network, combining radar warning, jamming, and missile approach warning.
- Full-Spectrum EW Defense: Comprehensive protection against radar and infrared-guided threats.
- Automated Threat Response: Adaptive jamming technology reacts to the latest radar advancements.
- Seamless System Integration: Works alongside avionics and weapons systems for coordinated defense.
Supplementary Countermeasure Systems

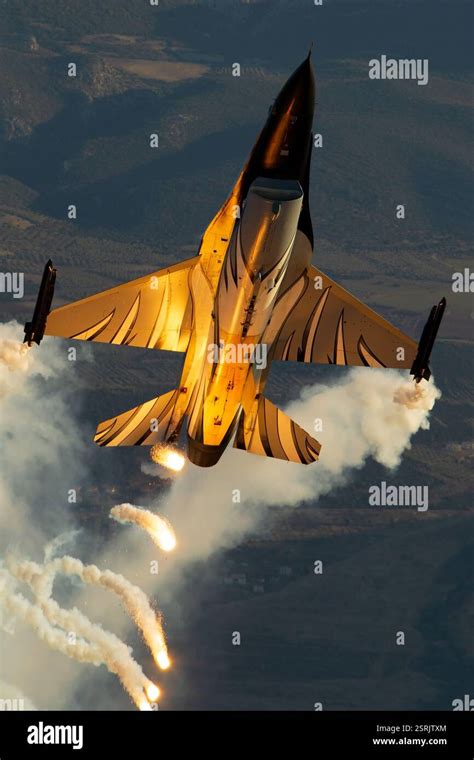

Chaff and Flare Dispensers
To complement ECM pods, the F-16 is equipped with chaff and flare dispensing systems that counter radar and infrared-guided missiles.
- Chaff: Small aluminum-coated fibers that confuse enemy radar.
- Flares: Heat-emitting countermeasures that divert infrared-guided missiles.
- Automatic Deployment: Linked with radar warning receivers for immediate reaction.
Conclusion
The ECM pods on the F-16 Fighting Falcon provide advanced electronic warfare capabilities essential for modern air combat. The AN/ALQ-131 and AN/ALQ-184 pods, alongside integrated RWR and HTS systems, ensure electronic dominance in hostile environments. Upgrades like the AN/ALQ-211 AIDEWS in the F-16V solidify its full-spectrum electronic defense, making the F-16 one of the most formidable multirole fighters in service today.
Frequently Asked Questions (FAQ)
1. How does the AN/ALQ-184 ECM pod improve the F-16’s survivability?
The AN/ALQ-184 ECM pod enhances survivability by using advanced jamming algorithms to disrupt multiple enemy radar threats simultaneously. It features adaptive electronic warfare technology, allowing the F-16 to operate in contested airspace with increased protection against modern air defense systems.
2. What is the difference between the AN/ALQ-131 and AN/ALQ-184 ECM pods?
The AN/ALQ-131 ECM pod is an older modular system with multi-band jamming capabilities, whereas the AN/ALQ-184 ECM pod integrates advanced software-based jamming and power management features, providing superior multi-threat countermeasures and easier software upgrades.
3. Can the F-16’s ECM pods protect against all types of radar threats?
While F-16 ECM pods provide extensive electronic protection, they are most effective against radar-guided missile systems and surveillance radars. However, they may be less effective against low-frequency radars designed to detect stealth aircraft. That is why F-16s also rely on chaff, flares, and SEAD operations to neutralize enemy air defenses.
