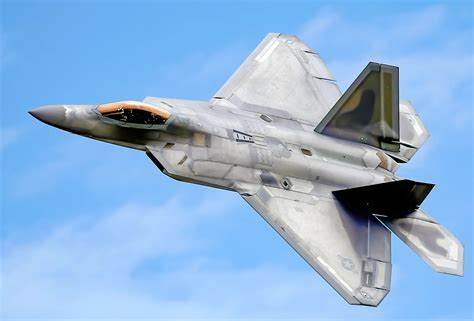

The F-22 Raptor, the world’s first fifth-generation stealth fighter, is equipped with a sophisticated missile and guided weapon system designed for supreme air superiority and precision strike capabilities. Its internal weapon bays and stealth configuration allow it to engage targets while maintaining low radar visibility, making it one of the most lethal combat aircraft ever developed.
Air-to-Air Missiles
The F-22 Raptor carries a combination of short-range and beyond-visual-range (BVR) air-to-air missiles, ensuring dominance in aerial combat against both modern and legacy threats.

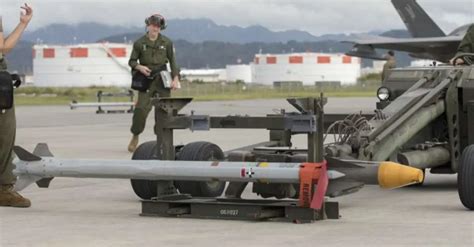

AIM-9X Block II “Sidewinder”
The AIM-9X Block II is the latest variant of the legendary Sidewinder missile, designed for close-range dogfighting.
- Infrared Imaging Guidance: Uses an advanced IR seeker for target acquisition.
- High Off-Boresight Launch (HOBL): Pilots can engage off-axis targets using helmet-mounted cueing systems.
- Thrust Vectoring Control: Enhances maneuverability to outmatch enemy aircraft in a close fight.
- Post-Launch Lock-on: The Block II variant features enhanced electronic counter-countermeasures (ECCM) and allows for target reassignment after launch.
AIM-120D AMRAAM
The AIM-120D Advanced Medium-Range Air-to-Air Missile (AMRAAM) is the primary BVR weapon of the F-22 Raptor.
- Range: Exceeds 160 km (100 miles), ensuring first-shot, first-kill capability.
- Active Radar Homing: Enables autonomous target tracking with advanced anti-jamming capabilities.
- Dual Data Link: Allows real-time mid-course updates from the APG-77 AESA radar, significantly improving accuracy.
- Multi-Target Engagement: Can simultaneously track and engage multiple enemy aircraft.
Air-to-Ground Weapons
The F-22 Raptor is not only an air superiority fighter but also a highly capable strike platform, utilizing precision-guided munitions for ground attack missions.
GBU-32/GBU-39 JDAM (Joint Direct Attack Munition)
The JDAM series provides the F-22 with all-weather precision strike capability.
- GBU-32 (1,000 lbs): Designed for hardened and fortified targets.

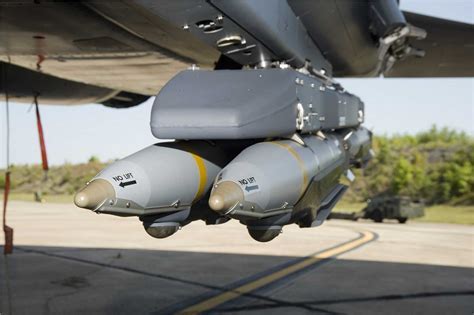

- GBU-39 (250 lbs Small Diameter Bomb – SDB): Allows for high load-out (up to 8 per mission), optimized for deep penetration strikes.
- GPS/INS Guidance: Ensures high accuracy with a circular error probable (CEP) of less than 5 meters.
- Low Drag Stealth Integration: Carried internally to preserve radar stealth characteristics.
Wind-Corrected Munitions Dispenser (WCMD)
The WCMD is used to deploy cluster munitions for area denial and anti-armor operations.
- Inertial Navigation System (INS) Correction: Adjusts for wind drift, ensuring precise dispersion over the target area.
- Effective Against Soft and Armored Targets: Ideal for engaging enemy convoys and fortified positions.
Weapon Bay Configuration and External Mounts

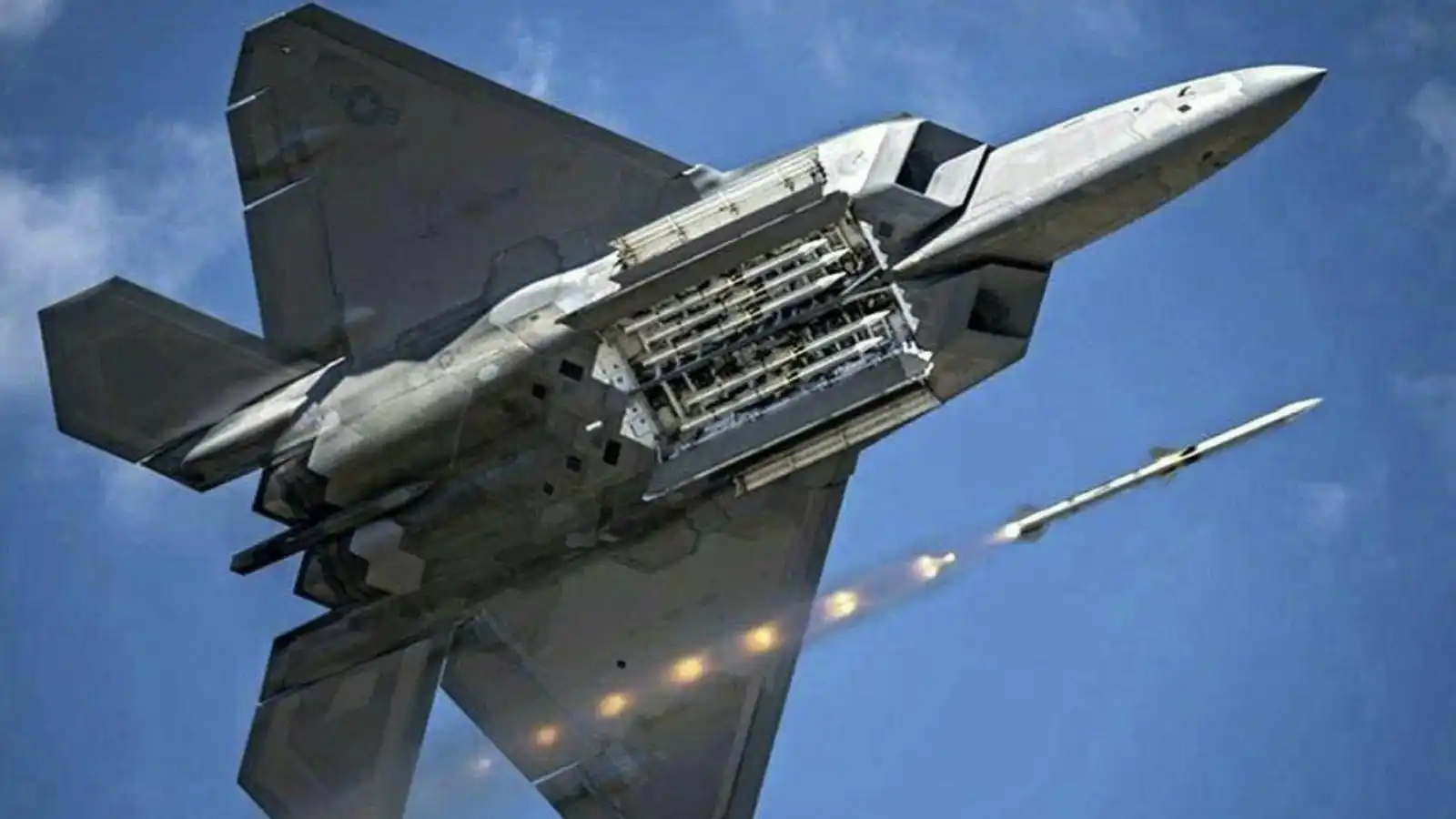

The F-22 Raptor utilizes an internal weapon bay system to maximize stealth while carrying a lethal payload.

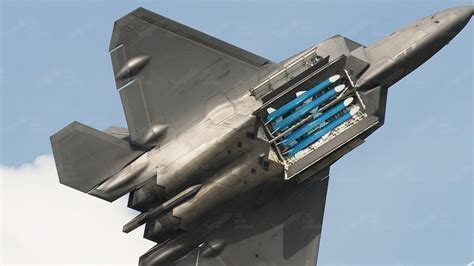

Internal Weapon Bays
- Main Bay: Houses up to 6 AIM-120D AMRAAMs or 2 JDAMs.
- Side Bays: Designed for 2 AIM-9X Sidewinder missiles, deployed via extendable launch racks.
External Hardpoints (Non-Stealth Mode)
For extended-range operations or when stealth is not a priority, the F-22 can use four external hardpoints for additional fuel tanks or weapons.
- Maximum External Payload: Up to 9,080 kg (20,000 lbs), allowing for additional AIM-120C missiles or drop tanks.
Advanced Combat Systems Enhancing Missile Performance
Link 16 Data Link
The F-22 Raptor is equipped with Link 16, allowing secure, real-time information sharing with other fighters, enhancing situational awareness and coordinated target engagement.
AN/APG-77 AESA Radar
The AN/APG-77 is a cutting-edge Active Electronically Scanned Array (AESA) radar, designed to:
- Track up to 24 targets simultaneously.
- Provide high-resolution targeting data for AMRAAM missiles.
- Operate in low probability of intercept (LPI) mode, reducing detectability.
Synthetic Aperture Radar (SAR) for Ground Attack
- Enables high-resolution imaging of ground targets, improving JDAM targeting accuracy.
- Enhances combat effectiveness in urban and mountainous terrain.
Future Upgrades and Combat Effectiveness
IRDS (Infrared Detection System) – 2024–2025 Upgrade
The F-22’s missile systems are continuously evolving, with new sensor integrations and enhancements.
- IRDS Implementation: Enhances passive detection of enemy aircraft without radar emissions.
- Stealth Fuel Tanks: Increases range and combat endurance while maintaining low observability.
Combat Performance
During simulated engagements, the F-22 Raptor demonstrated an unmatched kill ratio of 144:0, solidifying its air dominance.
FAQ: F-22 Raptor Missiles and Combat Capabilities
1. How many missiles can the F-22 Raptor carry?
The F-22 Raptor can carry up to 8 air-to-air missiles internally, typically a mix of AIM-120D AMRAAMs and AIM-9X Sidewinders. In a non-stealth configuration, it can carry additional weapons on external hardpoints.
2. What makes the AIM-120D AMRAAM superior to previous versions?
The AIM-120D offers extended range, dual data link capability, and enhanced guidance systems, allowing mid-course updates and better resistance to jamming.
3. How does the F-22 ensure missile effectiveness in combat?
The F-22 Raptor integrates stealth, high-speed maneuverability, AESA radar, and real-time data sharing to maximize missile effectiveness. The Link 16 system and sensor fusion provide superior targeting accuracy and survivability.
The F-22 Raptor, with its cutting-edge missile systems, continues to be the pinnacle of air combat superiority, ensuring U.S. air dominance well into the future.
