The F-16 Fighting Falcon has remained a cornerstone of modern air combat for decades, continuously evolving with cutting-edge technology. Among these advancements is the Low Observable Asymmetric Nozzle (LOAN), a technology developed to enhance the stealth capabilities and infrared signature reduction of the aircraft. This article explores the F-16 LOAN program, its development, applications, and potential implications for future air combat systems.
The Development of the LOAN Nozzle
Origins and Initial Testing

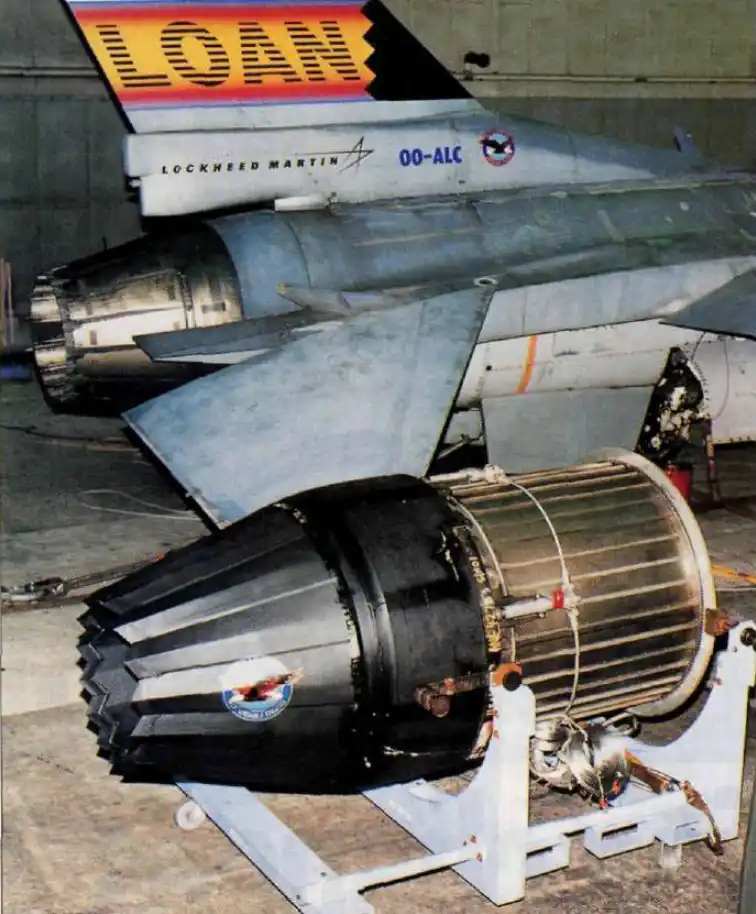

The LOAN nozzle was developed under the Joint Strike Fighter (JSF) BAA 94-2 program, aiming to introduce cost-effective, advanced stealth technology for future aircraft. In late 1996, an F-16C was selected for modifications, with its Pratt & Whitney F100-PW-200 engine retrofitted with a LOAN nozzle. This initiative, conducted by a Lockheed Martin and Pratt & Whitney team, marked a significant step in evaluating stealth nozzle technology.
A rapid two-day prototype operation facilitated the installation of the nozzle, setting the stage for extensive ground tests. These tests measured infrared emissions, nozzle temperatures, and nacelle airflow velocities from idle to maximum afterburner, gathering crucial data on the technology’s effectiveness.
Design and Features
LOAN incorporates several technological advancements to reduce radar cross-section (RCS) and infrared visibility, making the aircraft less detectable by enemy radar and heat-seeking missiles. Key features include:
- Geometrical shaping: The nozzle design minimizes radar reflections.
- Advanced cooling systems: Significantly reduce the aircraft’s infrared signature by lowering surface temperatures.
- Special coatings: Applied to internal and external structures, enhancing stealth characteristics.
- Extended nozzle lifespan: The cooling system more than doubles the life of the nozzle’s divergent flaps, leading to lower maintenance costs.
Performance Enhancements and Tactical Advantages
Stealth Improvements
Reducing an aircraft’s infrared and radar signatures enhances its survivability in modern combat environments. The LOAN nozzle minimizes heat emissions, making it harder for infrared-guided weapons to lock onto the aircraft. Similarly, radar reflections are reduced, increasing the F-16’s effectiveness in stealth operations.
Operational Cost Reductions
Maintenance and operational efficiency are key considerations for air forces worldwide. With LOAN, the extended life of the nozzle components means fewer replacements and lower maintenance costs, ensuring higher fleet readiness and cost-effectiveness.
Retrofit and New Aircraft Applications
One of the major advantages of LOAN technology is its adaptability. It can be integrated into both existing F-16 fleets and new production aircraft. This flexibility allows current F-16 operators worldwide to upgrade their jets without investing in entirely new platforms.
Future of LOAN Technology
Following the successful ground tests in 1996, the next step in the LOAN program involves flight demonstrations. These tests will validate the real-world performance of the nozzle under combat conditions. Lockheed Martin and Pratt & Whitney continue to explore further enhancements, ensuring that LOAN remains a viable option for the next-generation Joint Strike Fighter (JSF) program.
Impact on Future Fighter Aircraft
LOAN technology is not limited to the F-16. Its integration into the JSF and other advanced combat aircraft could revolutionize stealth tactics. As adversaries develop more sophisticated radar and infrared detection systems, innovations like LOAN will be crucial in maintaining air superiority.
Frequently Asked Questions
1. What are the main benefits of the LOAN nozzle for the F-16?
The LOAN nozzle improves stealth capabilities by reducing the radar cross-section and infrared signature of the aircraft. Additionally, its advanced cooling system extends the lifespan of nozzle components, reducing maintenance costs.
2. Can the LOAN nozzle be installed on existing F-16 aircraft?
Yes, the LOAN nozzle is designed for both retrofit and new production applications. This means that existing F-16 operators can upgrade their fleets without requiring entirely new aircraft.
3. How does the LOAN nozzle affect engine performance?
While the primary focus of the LOAN nozzle is on stealth and cost-effectiveness, it also maintains high engine efficiency. Tests have shown that it does not compromise thrust or overall performance while significantly reducing infrared emissions.
The F-16 LOAN program represents a pivotal advancement in military aviation, blending stealth, efficiency, and affordability. As further flight tests are conducted, this technology will continue to shape the future of air combat strategy and aircraft survivability.
