Modern air combat has evolved beyond sheer speed and firepower—stealth, electronic warfare, and tactical flexibility now define aerial dominance. Among the most formidable assets in a nation’s arsenal are fighter jets that carry deadly weapons internally. These advanced aircraft utilize internal weapons bays to conceal missiles, bombs, and cannons, drastically reducing radar cross-section while maintaining aerodynamic efficiency. This capability allows them to strike deep into contested airspace while avoiding detection, making them the pinnacle of 21st-century military aviation.
By eliminating external hardpoints during stealth missions, these jets can penetrate hostile defenses, engage targets at long range, and perform precision strikes without sacrificing survivability. Let us explore six of the most advanced aircraft in the world that embody this capability.

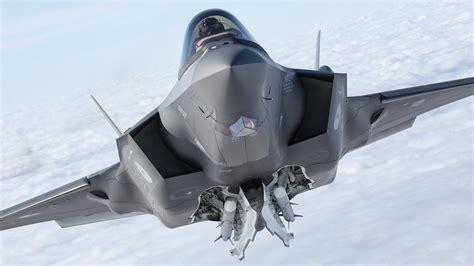

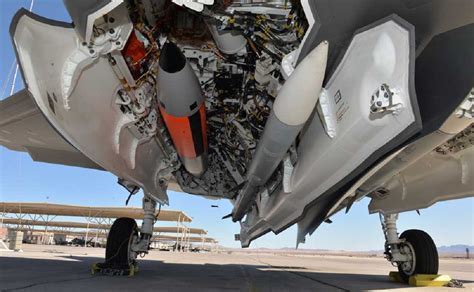

1. Lockheed Martin F-35 Lightning II (USA)
The F-35 Lightning II, developed under the Joint Strike Fighter program, is a fifth-generation multirole stealth fighter that has redefined combat versatility. Its internal weapons bays can house a GAU-22/A 25mm four-barrel rotary cannon, AIM-120 AMRAAM air-to-air missiles, and precision-guided bombs such as the GBU-12 Paveway II.
In stealth mode, all armaments remain concealed within its fuselage, ensuring a minimal radar cross-section (RCS). When stealth is less critical, the F-35 can switch to its “Beast Mode,” deploying external pylons to increase payload capacity up to 18,000 lbs. Its advanced AN/APG-81 AESA radar, distributed aperture system, and sensor fusion give pilots unmatched situational awareness.
- Role: Air superiority, ground attack, close air support, and electronic warfare.
- Maximum speed: Mach 1.6
- Combat range: ~1,239 km

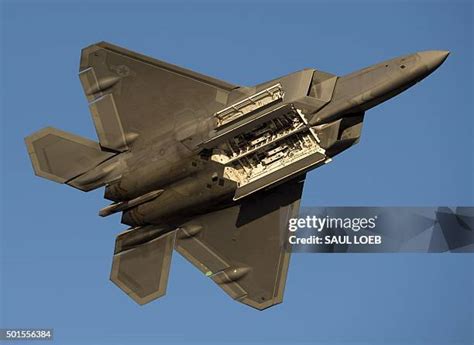

2. Lockheed Martin F/A-22 Raptor (USA)
The F/A-22 Raptor is the world’s first operational fifth-generation fighter and remains a benchmark for air dominance. Its internal weapons carriage consists of two side bays for AIM-9 Sidewinders and a central bay for up to six AIM-120C AMRAAMs. Additionally, it mounts an internal M61A2 Vulcan 20mm cannon for close-range engagements.
This configuration allows the Raptor to cruise at Mach 1.72 without afterburner—a feat known as supercruise—while maintaining a stealth profile. Its advanced avionics, low RCS, and thrust-vectoring nozzles make it highly maneuverable in dogfights while equally lethal in beyond-visual-range combat.
- Role: Air superiority and precision strike.
- Maximum speed: Mach 2.25
- Combat range: ~1,850 km

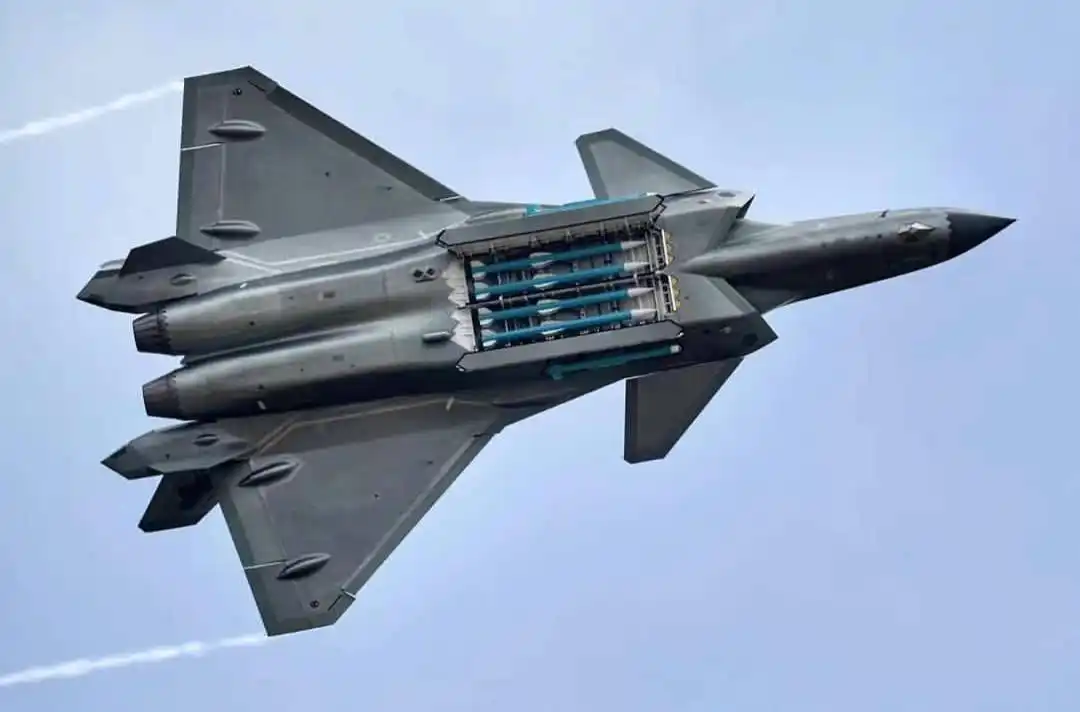

3. Chengdu J-20 “Mighty Dragon” (China)
China’s Chengdu J-20 is a fifth-generation stealth interceptor designed to challenge Western air superiority. Its internal bays can carry PL-15 long-range missiles with ranges exceeding 200 km, PL-10 short-range missiles, and precision-guided munitions. Like the F-35, it can operate in a “Beast Mode” configuration for heavy external loads, although this compromises stealth.
The J-20’s long range—over 1,200 km without refueling—is aided by large internal fuel tanks. Its networked combat systems allow coordinated strikes with other platforms, making it a critical asset for controlling contested airspace in the Indo-Pacific region.
- Role: Long-range interception, stealth penetration, and anti-access/area denial (A2/AD) missions.
- Maximum speed: Mach 2.0
- Combat range: 1,200+ km

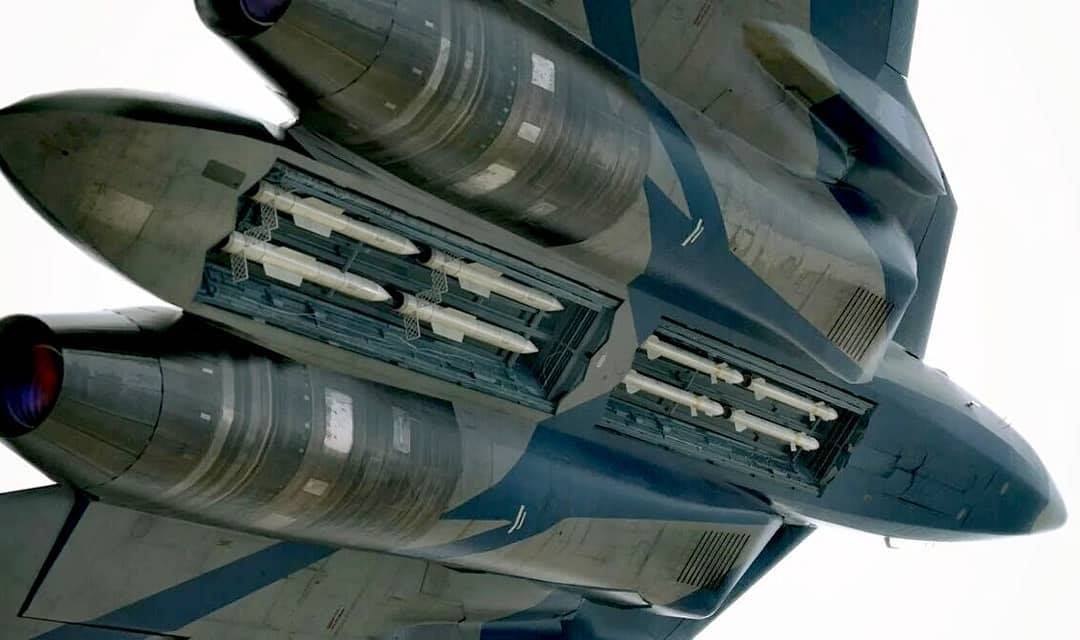

4. Sukhoi Su-57 “Felon” (Russia)
Russia’s answer to the American fifth-generation fighters, the Sukhoi Su-57, blends supermaneuverability with stealth-oriented shaping. Its internal weapons bays can store R-77M beyond-visual-range missiles, Kh-38M air-to-surface missiles, and guided bombs, with a total payload of up to 22,000 lbs.
The Su-57 is designed to strike both aerial and ground targets while remaining less detectable to radar. Its thrust-vectoring engines enable exceptional agility, and its weapons bays are optimized for mixed loads, enabling multi-mission flexibility.
- Role: Multirole stealth operations, including suppression of enemy air defenses (SEAD).
- Maximum speed: Mach 2.0
- Combat range: ~1,500 km

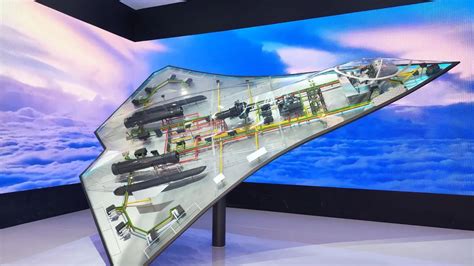

5. Chengdu J-36 (China)
Although still shrouded in secrecy, the Chengdu J-36 is rumored to be a sixth-generation fighter prototype with extreme internal weapons capacity. Its 4.2-meter-deep weapons bays are capable of holding two hypersonic missiles, eight PL-21 long-range missiles, or a combination of 16 medium-range missiles with four close-combat missiles in layered racks.
Reports suggest a triple-engine design enabling speeds over Mach 2, along with modular bay systems for mixed mission profiles, including anti-ship warfare and electronic attack. If confirmed, this platform could redefine airborne arsenal aircraft capabilities.
- Role: Long-range strategic strike and force multiplication.
- Maximum speed: Mach 2.2+ (estimated)
- Combat range: Classified

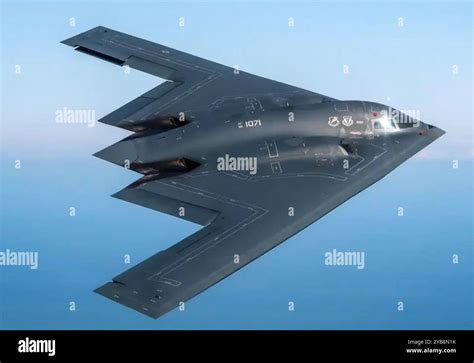

6. Northrop Grumman B-2 Spirit (USA)
While technically a strategic bomber rather than a fighter, the B-2 Spirit’s fully internal weapons storage makes it one of the most lethal aircraft in existence. Its rotating bomb bays can carry up to 80,000 lbs of ordnance, including 16 B83 nuclear bombs or 80 Mk82 precision-guided bombs.
Its flying-wing design and radar-absorbing materials allow it to penetrate deep into enemy territory without detection. The B-2’s global strike capability means it can launch missions from the continental US and strike targets anywhere in the world.
- Role: Strategic stealth bombing and nuclear deterrence.
- Maximum speed: Mach 0.95
- Range: 11,100 km without refueling
Advantages of Internal Weapons Carriage
The defining advantage of these fighter jets with internal weapons bays lies in the balance between lethality and survivability. By concealing armaments within the fuselage:
- Stealth Preservation: Internal bays eliminate radar-reflective protrusions, allowing penetration of dense air-defense networks.
- Aerodynamic Efficiency: Reduced drag translates to increased speed, maneuverability, and fuel economy.
- Mission Flexibility: Pilots can transition from stealth mode to maximum payload configurations depending on mission needs.
Comparative Data Table
| Aircraft | Country | Generation | Internal Armament Capacity | Max Speed | Combat Range | Primary Role |
|---|---|---|---|---|---|---|
| F-35 Lightning II | USA | 5th | GAU-22/A cannon, AIM-120, GBU-12 | Mach 1.6 | ~1,239 km | Multirole stealth fighter |
| F/A-22 Raptor | USA | 5th | M61A2 cannon, AIM-9, AIM-120C | Mach 2.25 | ~1,850 km | Air superiority |
| J-20 Mighty Dragon | China | 5th | PL-15, PL-10, guided bombs | Mach 2.0 | 1,200+ km | Long-range interception |
| Su-57 Felon | Russia | 5th | R-77M, Kh-38M, guided bombs | Mach 2.0 | ~1,500 km | Multirole stealth |
| J-36 (Prototype) | China | 6th (estimated) | Hypersonic, PL-21, medium missiles | Mach 2.2+ | Classified | Strategic strike |
| B-2 Spirit | USA | N/A (Bomber) | Nuclear & precision bombs | Mach 0.95 | 11,100 km | Strategic bombing |
FAQ
1. Why do modern fighters carry weapons internally?
Internal weapons carriage drastically reduces radar cross-section, preserving stealth. It also improves aerodynamic efficiency by reducing drag, which enhances speed and fuel range—critical in penetrating heavily defended airspace.
2. Can these jets carry weapons externally?
Yes. Most stealth fighters can carry weapons externally when stealth is not the priority, a configuration often referred to as “Beast Mode”, allowing for significantly increased payloads.
3. Which fighter jet has the largest internal weapons capacity?
Among fighters, the Chengdu J-36 (if confirmed) appears to have the most expansive internal bay. However, in the bomber category, the B-2 Spirit dwarfs all with an 80,000-lb capacity.
