The F-22 Raptor, the world’s first operational fifth-generation fighter jet, is designed for air superiority, stealth, and unmatched maneuverability. While its primary armament consists of advanced air-to-air and air-to-ground missiles, it is also equipped with a formidable M61A2 20mm Gatling gun, providing a crucial close-range combat capability. This article delves into the design, functionality, and strategic implications of the F-22’s gun system, highlighting its role in modern aerial warfare.
Overview of the F-22A 20mm Gun System
The F-22A 20mm Gun System features the lightweight M61A2 Gatling gun combined with an advanced linear linkless ammunition feed system. This configuration ensures high reliability and low weight, optimizing performance without compromising stealth.
Key Specifications
- Total System Weight: 648 pounds (349 kg)
- Gun Weight: 202 pounds (112.5 kg)
- Feed System Weight: 176 pounds (107 kg)
- Ammunition Weight (Full Load): 270 pounds (127.5 kg)
- Rate of Fire: 6,000 rounds per minute
- Ammunition Capacity: 480 rounds
- Ammunition Type: NATO Standardized Agreement (STANAG) 3585-compatible
- Feed System: Linear linkless, closed-loop
- Drive System: Hydraulic

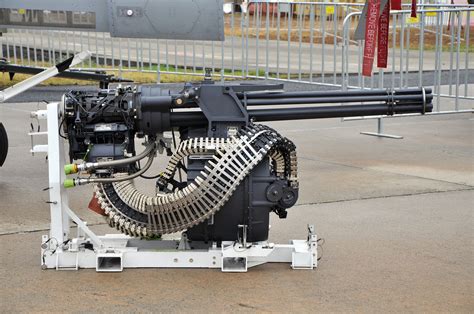

M61A2 20mm Gatling Gun: Design and Performance
The M61A2 is a six-barrel rotary cannon, an improved version of the widely used M61 Vulcan. It is designed for high-speed firing, ensuring superior firepower density in short engagements.
Advantages of the M61A2 in the F-22
- Lightweight Construction: The M61A2 is approximately 20% lighter than the standard M61 Vulcan, reducing overall aircraft weight.
- High Rate of Fire: At 6,000 rounds per minute, the gun can unleash devastating firepower in mere seconds.
- Reliability: The linear linkless ammunition feed system prevents jamming and enhances operational effectiveness.
- Stealth Considerations: The gun bay door remains closed until firing, preserving the aircraft’s low radar cross-section (RCS).
Installation and Stealth Optimization
Gun Placement
The M61A2 is installed above the right air intake within a dedicated internal gun bay. This positioning allows for optimal balance and aerodynamic efficiency, maintaining the aircraft’s performance.
Stealth Considerations
To preserve the F-22’s stealth capabilities, the gun is enclosed in a concealed compartment. The gun door only opens when firing, minimizing the impact on radar signature. This design ensures that the F-22 retains its edge in beyond-visual-range (BVR) engagements while maintaining close-range combat capabilities.
Ammunition and Loading System
The F-22’s ammunition feed system utilizes a linear linkless closed-loop design, eliminating the need for traditional linked belts. This innovation results in greater reliability, faster reloading times, and reduced weight.
Compatible Loading Systems
The F-22 gun system is compatible with three General Dynamics loading systems:
- Universal Ammunition Loading System (UALS)
- Ammunition Loading System (ALS)
- Universal Delinking Loader (UDL)
These systems ensure rapid and efficient ammunition reloading, a critical advantage in operational scenarios.
Tactical Applications and Limitations
Combat Use Cases
While the F-22 excels in beyond-visual-range engagements, its M61A2 Gatling gun plays a crucial role in dogfighting and close-range combat. It serves as a backup weapon when missiles are depleted or ineffective, ensuring the F-22 remains a formidable adversary in all combat scenarios.
Limitations and Challenges
- Limited Ammunition Capacity: With only 480 rounds, the gun can fire for less than five seconds in continuous bursts.
- Compromised Stealth During Firing: The gun bay door must open, briefly increasing the aircraft’s radar cross-section.
- Close-Range Combat Is Not the Primary Role: The F-22 is designed primarily for BVR engagements, reducing the frequency of gun use.
Conclusion
The F-22 Raptor’s M61A2 20mm Gatling gun represents a balance between firepower and stealth. While not its primary weapon, the gun system provides a crucial last-resort capability in dogfights. The lightweight design, high reliability, and seamless integration with the aircraft’s stealth features make it an indispensable component of the F-22’s armament.
Frequently Asked Questions (FAQ)
1. Why does the F-22 have a gun if it is designed for beyond-visual-range combat?
While the F-22 excels in long-range missile engagements, air combat is unpredictable. If missiles miss or are depleted, the M61A2 20mm Gatling gun ensures the F-22 remains lethal in close-range dogfights.
2. How does the gun affect the F-22’s stealth?
The gun bay remains closed until firing, preserving the aircraft’s low radar signature. However, opening the bay door temporarily increases radar visibility, making gun use a strategic decision in combat.
3. What type of ammunition does the F-22’s gun use?
The F-22’s M61A2 Gatling gun is compatible with NATO STANAG 3585-standardized 20mm ammunition, ensuring interoperability with allied forces.
This in-depth analysis of the F-22 Raptor’s gun system underscores its role in modern aerial warfare. While its primary weapons remain advanced missiles, the M61A2 20mm Gatling gun provides a critical backup capability, ensuring that even in close-range engagements, the F-22 remains a dominant force.
